The basic camera for a 2D world. There are two spaces - the Worldspace and the Viewspace. The Worldspace is standard for all cameras, it is the 'gameworld' space. The Viewspace is the subspace of the worldspace. It is what the camera captures. Scale is zoom factor. NOT resolution scalar. More...

#include <Camera2D.hpp>

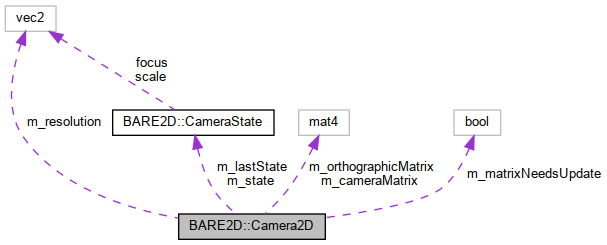

Collaboration diagram for BARE2D::Camera2D:

Public Member Functions
	Camera2D ()

	~Camera2D ()

void	init (float screenWidth, float screenHeight)
	Initializes the camera. More...

void	update ()
	Updates the matrix if necessary. More...

glm::vec2	getWorldspaceCoord (glm::vec2 pos) const
	Converts a coordinate from Worldspace to Viewspace. More...

glm::vec2	getViewspaceCoord (glm::vec2 pos) const
	Converts a coordinate from Worldspace to Viewspace. More...

glm::vec2	getWorldspaceSize (glm::vec2 size) const

glm::vec2	getViewspaceSize (glm::vec2 size) const

glm::vec4	getWorldspaceRect (glm::vec4 destRect) const

glm::vec4	getViewspaceRect (glm::vec4 destRect) const

void	setFocus (glm::vec2 newFocus)
	Sets the center of the camera to newFocus. More...

void	offsetFocus (glm::vec2 deltaPos)
	Moves the center of the camera to focus + deltaPos. More...

void	setScale (float newScaleX, float newScaleY)
	Sets the scale of the camera. More...

void	offsetScale (float deltaScaleX, float deltaScaleY)
	Adds to the zoom factor of the camera. More...

glm::vec2	getViewspaceResolution () const

glm::vec2	getFocus () const

glm::vec2	getStatePosition () const

glm::vec2	getScale () const

const glm::mat4 &	getCameraMatrix () const

bool	isRectInViewspace (glm::vec4 &destRect) const

CameraState	getState ()

CameraState	getLastState ()

Private Attributes
glm::vec2	m_resolution

CameraState	m_state

CameraState	m_lastState

glm::mat4	m_cameraMatrix

glm::mat4	m_orthographicMatrix

bool	m_matrixNeedsUpdate = false

Detailed Description

The basic camera for a 2D world. There are two spaces - the Worldspace and the Viewspace. The Worldspace is standard for all cameras, it is the 'gameworld' space. The Viewspace is the subspace of the worldspace. It is what the camera captures. Scale is zoom factor. NOT resolution scalar.

Definition at line 23 of file Camera2D.hpp.

Constructor & Destructor Documentation

◆ Camera2D()

BARE2D::Camera2D::Camera2D ( )

Definition at line 9 of file Camera2D.cpp.

◆ ~Camera2D()

BARE2D::Camera2D::~Camera2D ( )

Definition at line 14 of file Camera2D.cpp.

Member Function Documentation

◆ getCameraMatrix()

const glm::mat4 & BARE2D::Camera2D::getCameraMatrix ( ) const

Returns: The camera matrix.

Definition at line 169 of file Camera2D.cpp.

References m_cameraMatrix.

◆ getFocus()

glm::vec2 BARE2D::Camera2D::getFocus ( ) const

Returns: The camera focus

Definition at line 161 of file Camera2D.cpp.

References BARE2D::CameraState::focus, and m_state.

◆ getLastState()

CameraState BARE2D::Camera2D::getLastState ( )

Returns: The camera's last state before modification of the current state.

Definition at line 181 of file Camera2D.cpp.

References m_lastState.

◆ getScale()

glm::vec2 BARE2D::Camera2D::getScale ( ) const

Returns: The zoom levels

Definition at line 165 of file Camera2D.cpp.

References m_state, and BARE2D::CameraState::scale.

◆ getState()

CameraState BARE2D::Camera2D::getState ( )

Returns: The camera's current state.

Definition at line 177 of file Camera2D.cpp.

References m_state.

◆ getStatePosition()

glm::vec2 BARE2D::Camera2D::getStatePosition ( ) const

Returns: The camera's bottom-left position.

Definition at line 185 of file Camera2D.cpp.

References BARE2D::CameraState::focus, m_resolution, m_state, and BARE2D::CameraState::scale.

Referenced by getViewspaceCoord(), and getWorldspaceCoord().

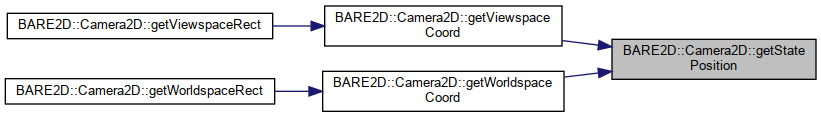

Here is the caller graph for this function:

◆ getViewspaceCoord()

glm::vec2 BARE2D::Camera2D::getViewspaceCoord ( glm::vec2 pos ) const

Converts a coordinate from Worldspace to Viewspace.

Parameters

pos	A point in Worldspace

Returns: The converted point in Viewspace.

Definition at line 74 of file Camera2D.cpp.

References getStatePosition(), m_state, and BARE2D::CameraState::scale.

Referenced by getViewspaceRect().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getViewspaceRect()

glm::vec4 BARE2D::Camera2D::getViewspaceRect ( glm::vec4 destRect ) const

Returns: The Viewspace rectangle (dest/rect) from a Worldspace rectangle (dest/rect)

Definition at line 113 of file Camera2D.cpp.

References getViewspaceCoord(), and getViewspaceSize().

Here is the call graph for this function:

◆ getViewspaceResolution()

glm::vec2 BARE2D::Camera2D::getViewspaceResolution ( ) const

Returns: The POV size

Definition at line 157 of file Camera2D.cpp.

References m_resolution.

◆ getViewspaceSize()

glm::vec2 BARE2D::Camera2D::getViewspaceSize ( glm::vec2 size ) const

Returns: The Viewspace size from a Worldspace size

Definition at line 95 of file Camera2D.cpp.

References m_state, and BARE2D::CameraState::scale.

Referenced by getViewspaceRect().

Here is the caller graph for this function:

◆ getWorldspaceCoord()

glm::vec2 BARE2D::Camera2D::getWorldspaceCoord ( glm::vec2 pos ) const

Converts a coordinate from Worldspace to Viewspace.

Parameters

pos	A point in Viewspace

Returns: The converted point in Worldspace.

Definition at line 62 of file Camera2D.cpp.

References getStatePosition(), m_state, and BARE2D::CameraState::scale.

Referenced by getWorldspaceRect().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getWorldspaceRect()

glm::vec4 BARE2D::Camera2D::getWorldspaceRect ( glm::vec4 destRect ) const

Returns: The Worldspace rectangle (dest/rect) from a Viewspace rectangle (dest/rect)

Definition at line 103 of file Camera2D.cpp.

References getWorldspaceCoord(), and getWorldspaceSize().

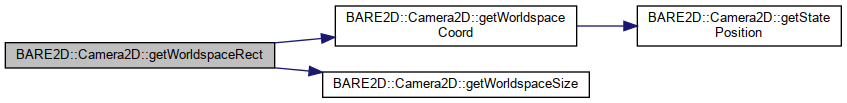

Here is the call graph for this function:

◆ getWorldspaceSize()

glm::vec2 BARE2D::Camera2D::getWorldspaceSize ( glm::vec2 size ) const

Returns: The Worldspace size from a Viewspace size

Definition at line 87 of file Camera2D.cpp.

References m_state, and BARE2D::CameraState::scale.

Referenced by getWorldspaceRect().

Here is the caller graph for this function:

◆ init()

void BARE2D::Camera2D::init	(	float	screenWidth,
		float	screenHeight
	)

Initializes the camera.

Parameters

screenWidth	The width of the screen or FBO the camera needs to transform things within. The 'visual field'
screenHeight	The height of the screen or FBO the camera needs to transform things within. The 'visual field'

Definition at line 17 of file Camera2D.cpp.

References BARE2D::CameraState::focus, m_cameraMatrix, m_lastState, m_matrixNeedsUpdate, m_orthographicMatrix, m_resolution, m_state, and BARE2D::CameraState::scale.

◆ isRectInViewspace()

bool BARE2D::Camera2D::isRectInViewspace ( glm::vec4 & destRect ) const

Definition at line 173 of file Camera2D.cpp.

◆ offsetFocus()

void BARE2D::Camera2D::offsetFocus ( glm::vec2 deltaPos )

Moves the center of the camera to focus + deltaPos.

Parameters

deltaPos The change to move by

Definition at line 131 of file Camera2D.cpp.

References BARE2D::CameraState::focus, m_lastState, m_matrixNeedsUpdate, and m_state.

◆ offsetScale()

void BARE2D::Camera2D::offsetScale	(	float	deltaScaleX,
		float	deltaScaleY
	)

Adds to the zoom factor of the camera.

Parameters

deltaScaleX	The x direction
deltaScaleY	The y direction

Definition at line 148 of file Camera2D.cpp.

References m_lastState, m_matrixNeedsUpdate, m_state, and BARE2D::CameraState::scale.

◆ setFocus()

void BARE2D::Camera2D::setFocus ( glm::vec2 newFocus )

Sets the center of the camera to newFocus.

Parameters

newFocus The position to set the center of the camera to

Definition at line 123 of file Camera2D.cpp.

References BARE2D::CameraState::focus, m_lastState, m_matrixNeedsUpdate, and m_state.

◆ setScale()

void BARE2D::Camera2D::setScale	(	float	newScaleX,
		float	newScaleY
	)

Sets the scale of the camera.

Parameters

newScaleX	The scale to set ot
newScaleY	The scale to set ot

Definition at line 139 of file Camera2D.cpp.

References m_lastState, m_matrixNeedsUpdate, m_state, and BARE2D::CameraState::scale.

◆ update()

void BARE2D::Camera2D::update ( )

Updates the matrix if necessary.

Definition at line 35 of file Camera2D.cpp.

References BARE2D::CameraState::focus, m_cameraMatrix, m_matrixNeedsUpdate, m_orthographicMatrix, m_resolution, m_state, and BARE2D::CameraState::scale.

Field Documentation

◆ m_cameraMatrix

glm::mat4 BARE2D::Camera2D::m_cameraMatrix

private

Definition at line 145 of file Camera2D.hpp.

Referenced by getCameraMatrix(), init(), and update().

◆ m_lastState

CameraState BARE2D::Camera2D::m_lastState

private

Definition at line 142 of file Camera2D.hpp.

Referenced by getLastState(), init(), offsetFocus(), offsetScale(), setFocus(), and setScale().

◆ m_matrixNeedsUpdate

bool BARE2D::Camera2D::m_matrixNeedsUpdate = false

private

Definition at line 147 of file Camera2D.hpp.

Referenced by init(), offsetFocus(), offsetScale(), setFocus(), setScale(), and update().

◆ m_orthographicMatrix

glm::mat4 BARE2D::Camera2D::m_orthographicMatrix

private

Definition at line 145 of file Camera2D.hpp.

Referenced by init(), and update().

◆ m_resolution

glm::vec2 BARE2D::Camera2D::m_resolution

private

Definition at line 138 of file Camera2D.hpp.

Referenced by getStatePosition(), getViewspaceResolution(), init(), and update().

◆ m_state

CameraState BARE2D::Camera2D::m_state

private

Definition at line 140 of file Camera2D.hpp.

Referenced by getFocus(), getScale(), getState(), getStatePosition(), getViewspaceCoord(), getViewspaceSize(), getWorldspaceCoord(), getWorldspaceSize(), init(), offsetFocus(), offsetScale(), setFocus(), setScale(), and update().

The documentation for this class was generated from the following files:
