The ShaderProgram is a GLSL program which combines two shaders - the vertex shader and the fragment shader - to allow rendering. Each renderer should have its own program. More...

#include <ShaderProgram.hpp>

Collaboration diagram for BARE2D::ShaderProgram:

Public Member Functions
	ShaderProgram ()

	~ShaderProgram ()

void	compileShaders (const char vertexShaderPath, const char fragmentShaderPath)
	Compiles the shaders. Does not link them. More...

void	compileShadersFromSource (const char vertexSource, const char fragmentSource)
	Similar to compileShaders, this just compiles the shaders. More...

void	linkShaders (std::initializer_list< std::string > attributes)
	Links the compiled shaders together to create a coherent shader program. More...

template<class T >
void	setUniform (const std::string uniform, T *data, unsigned int num=1)
	A generalized wrapper to find and set a uniform for this shader. More...

template<class T >
void	setUniformMatrix (const std::string uniform, bool transpose, T *data, unsigned int num=1)
	Similar to setUniform. More...

bool	doesUniformExist (const std::string uniform)

void	bindFragOutputLocation (std::string outputVariableName, unsigned int location)
	A call to glBindFragDataLocation() - Causes an output variable of the fragment shader to output to a specific location. This is roughly equivalent to modern GLSL's layout(location=n) specifier, which is unusable until GLSL 330. More...

void	use ()
	Activates this shader program for the renderer to use. More...

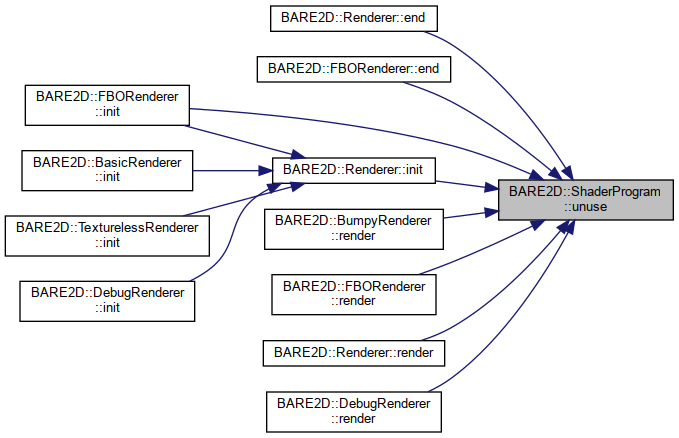

void	unuse ()
	Deactivates this shader program. More...

void	destroy ()
	Releases all bound objects and deletes any allocated stuff. More...

template<>
void	setUniform (const std::string uniform, int *data, unsigned int num)

template<>
void	setUniform (const std::string uniform, unsigned int *data, unsigned int num)

template<>
void	setUniform (const std::string uniform, float *data, unsigned int num)

Private Member Functions
void	compileShaderFromSource (const char *source, const std::string &name, GLuint id)
	Compiles a shader from source with OpenGL id. More...

GLint	getUniformLocation (const std::string &uniform)
	Gets the location of a uniform in a program. More...

Private Attributes
unsigned int	m_numberAttributes = 0

GLuint	m_programID

GLuint	m_vertexShaderID

GLuint	m_fragmentShaderID

Detailed Description

The ShaderProgram is a GLSL program which combines two shaders - the vertex shader and the fragment shader - to allow rendering. Each renderer should have its own program.

Definition at line 14 of file ShaderProgram.hpp.

Constructor & Destructor Documentation

◆ ShaderProgram()

BARE2D::ShaderProgram::ShaderProgram ( )

Definition at line 14 of file ShaderProgram.cpp.

◆ ~ShaderProgram()

BARE2D::ShaderProgram::~ShaderProgram ( )

Definition at line 19 of file ShaderProgram.cpp.

Member Function Documentation

◆ bindFragOutputLocation()

void BARE2D::ShaderProgram::bindFragOutputLocation	(	std::string	outputVariableName,
		unsigned int	location
	)

A call to glBindFragDataLocation() - Causes an output variable of the fragment shader to output to a specific location. This is roughly equivalent to modern GLSL's layout(location=n) specifier, which is unusable until GLSL 330.

Parameters

outputVariableName	The name of the output variable (oftentimes just colour or something)
location	The output location, corresponding to a colour attachment. Must be less than GL_MAX_DRAW_BUFFERS.

Definition at line 141 of file ShaderProgram.cpp.

References m_programID.

Referenced by BARE2D::Renderer::link().

Here is the caller graph for this function:

◆ compileShaderFromSource()

void BARE2D::ShaderProgram::compileShaderFromSource	(	const char *	source,
		const std::string &	name,
		GLuint	id
	)

private

Compiles a shader from source with OpenGL id.

Parameters

source	The source to compile from.
name	The name of the shader. This is normally associated with the key in the cache.
id	The ID of the shader that has been created with OpenGL calls.

Definition at line 183 of file ShaderProgram.cpp.

References BARE2D::SHADER_COMPILE_FAILURE, and BARE2D::throwFatalError().

Referenced by compileShadersFromSource().

Here is the call graph for this function:

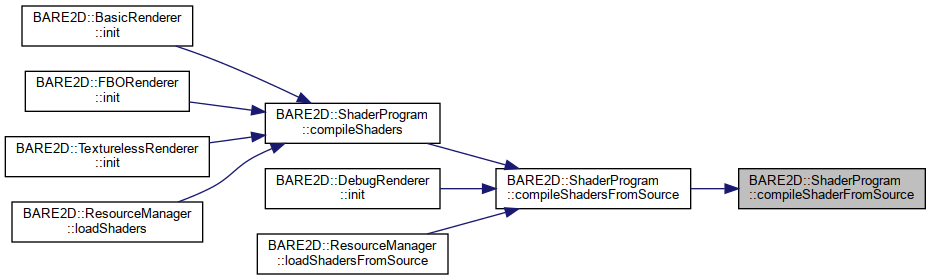

Here is the caller graph for this function:

◆ compileShaders()

void BARE2D::ShaderProgram::compileShaders	(	const char *	vertexShaderPath,
		const char *	fragmentShaderPath
	)

Compiles the shaders. Does not link them.

Parameters

vertexShaderPath	The path to the vertex shader
fragmentShaderPath	The path to the fragment shader.

Definition at line 23 of file ShaderProgram.cpp.

References compileShadersFromSource(), BARE2D::ResourceManager::getAssetsPathPrefix(), and BARE2D::IOManager::readFileToBuffer().

Referenced by BARE2D::BasicRenderer::init(), BARE2D::FBORenderer::init(), BARE2D::TexturelessRenderer::init(), and BARE2D::ResourceManager::loadShaders().

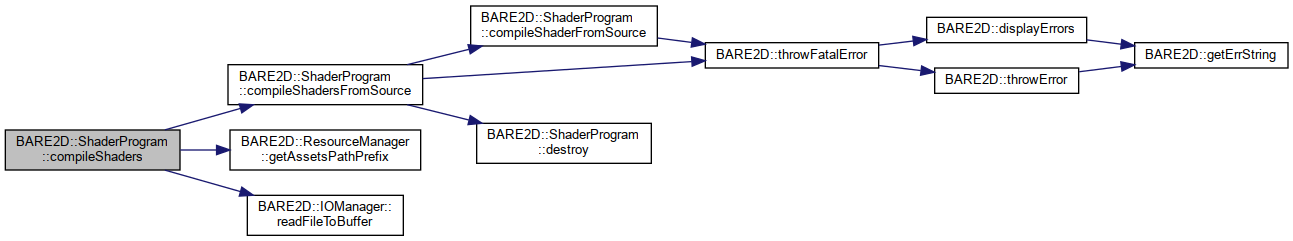

Here is the call graph for this function:

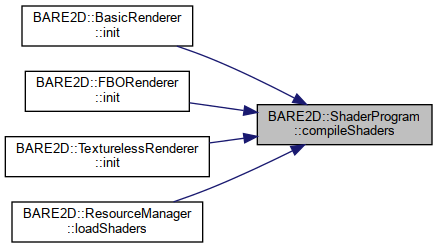

Here is the caller graph for this function:

◆ compileShadersFromSource()

void BARE2D::ShaderProgram::compileShadersFromSource	(	const char *	vertexSource,
		const char *	fragmentSource
	)

Similar to compileShaders, this just compiles the shaders.

Parameters

vertexSource	The source code for the vertex shader
fragmentSource	The source code for the fragment shader

Definition at line 38 of file ShaderProgram.cpp.

References compileShaderFromSource(), destroy(), BARE2D::FRAGMENT_SHADER_FAILURE, BARE2D::GLSL_PROGRAM_FAILURE, m_fragmentShaderID, m_programID, m_vertexShaderID, BARE2D::throwFatalError(), and BARE2D::VERTEX_SHADER_FAILURE.

Referenced by compileShaders(), BARE2D::DebugRenderer::init(), and BARE2D::ResourceManager::loadShadersFromSource().

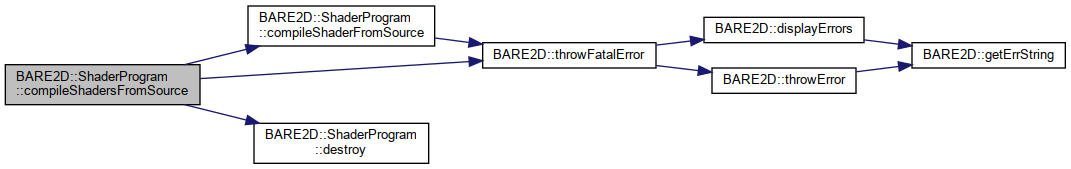

Here is the call graph for this function:

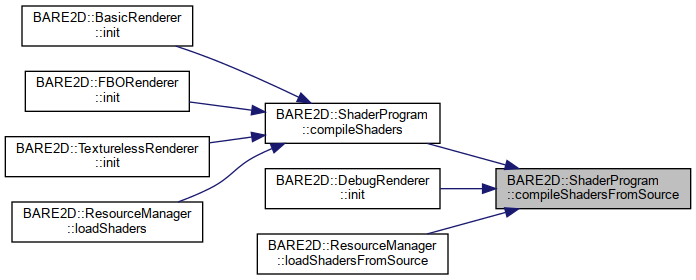

Here is the caller graph for this function:

◆ destroy()

void BARE2D::ShaderProgram::destroy ( )

Releases all bound objects and deletes any allocated stuff.

Definition at line 172 of file ShaderProgram.cpp.

References m_fragmentShaderID, m_numberAttributes, m_programID, and m_vertexShaderID.

Referenced by compileShadersFromSource(), and BARE2D::Renderer::destroy().

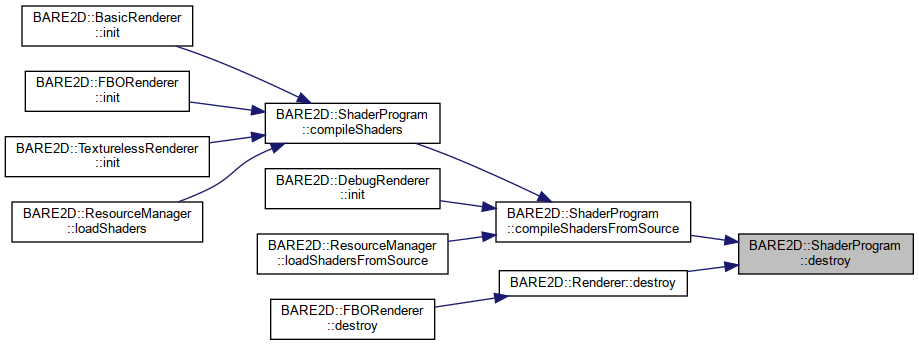

Here is the caller graph for this function:

◆ doesUniformExist()

bool BARE2D::ShaderProgram::doesUniformExist ( const std::string uniform )

Parameters

uniform The uniform to check for

Returns: True if the uniform is in the compiled shader program, false otherwise.

Definition at line 213 of file ShaderProgram.cpp.

References getUniformLocation().

Referenced by BARE2D::FBORenderer::initUniforms().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getUniformLocation()

GLint BARE2D::ShaderProgram::getUniformLocation ( const std::string & uniform )

private

Gets the location of a uniform in a program.

Parameters

uniform The name of the uniform to find.

Returns: The location of the uniform.

Definition at line 125 of file ShaderProgram.cpp.

References m_programID, BARE2D::throwError(), and BARE2D::UNIFORM_NOT_FOUND.

Referenced by doesUniformExist(), and setUniform().

Here is the call graph for this function:

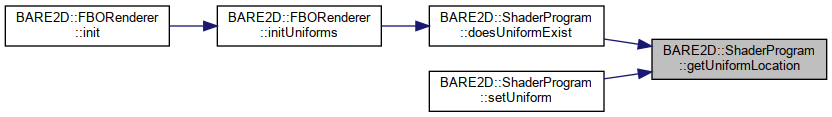

Here is the caller graph for this function:

◆ linkShaders()

void BARE2D::ShaderProgram::linkShaders ( std::initializer_list< std::string > attributes )

Links the compiled shaders together to create a coherent shader program.

Parameters

attributes An initializer_list of std::string type of attributes to add to the program. These must link up with the renderer used to draw with this program.

Definition at line 75 of file ShaderProgram.cpp.

References m_fragmentShaderID, m_numberAttributes, m_programID, m_vertexShaderID, BARE2D::SHADER_LINK_FAILURE, and BARE2D::throwFatalError().

Referenced by BARE2D::Renderer::link().

Here is the call graph for this function:

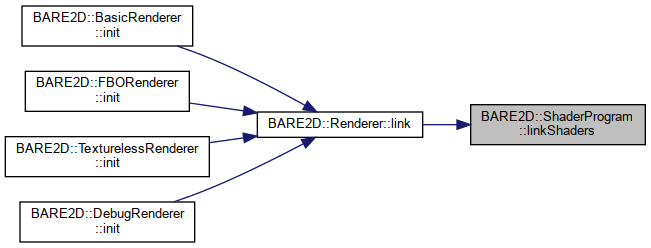

Here is the caller graph for this function:

◆ setUniform() [1/4]

template<>

void BARE2D::ShaderProgram::setUniform	(	const std::string	uniform,
		float *	data,
		unsigned int	num
	)

Definition at line 248 of file ShaderProgram.cpp.

References getUniformLocation().

Here is the call graph for this function:

◆ setUniform() [2/4]

template<>

void BARE2D::ShaderProgram::setUniform	(	const std::string	uniform,
		int *	data,
		unsigned int	num
	)

Definition at line 224 of file ShaderProgram.cpp.

References getUniformLocation().

Here is the call graph for this function:

◆ setUniform() [3/4]

template<class T >

void BARE2D::ShaderProgram::setUniform	(	const std::string	uniform,
		T *	data,
		unsigned int	num = `1`
	)

A generalized wrapper to find and set a uniform for this shader.

Parameters

uniform	The name of the uniform in the shader
data	The variable to actually set the uniform's value to. This can be a glm::{i,ui,f}vec{1,2,3,4}, an unsigned int, an int, or a float

Referenced by BARE2D::FBORenderer::initUniforms(), BARE2D::BumpyRenderer::initUniforms(), and BARE2D::BasicRenderer::preRender().

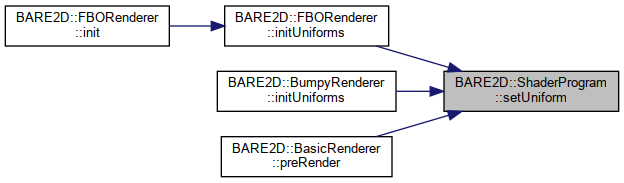

Here is the caller graph for this function:

◆ setUniform() [4/4]

template<>

void BARE2D::ShaderProgram::setUniform	(	const std::string	uniform,
		unsigned int *	data,
		unsigned int	num
	)

Definition at line 236 of file ShaderProgram.cpp.

References getUniformLocation().

Here is the call graph for this function:

◆ setUniformMatrix()

template<class T >

void BARE2D::ShaderProgram::setUniformMatrix	(	const std::string	uniform,
		bool	transpose,
		T *	data,
		unsigned int	num = `1`
	)

Similar to setUniform.

Parameters

uniform	The name of the uniform in the shader
transpose	Should the matrix be transposed when converted? If false, each matrix is assumed to be supplied in column major order. Else, row major order
data	A pointer to the matrix, which is a 1D array of floats, ints, or unsigned ints.

Referenced by BARE2D::BasicRenderer::preRender(), BARE2D::TexturelessRenderer::preRender(), BARE2D::BumpyRenderer::preRender(), and BARE2D::FBORenderer::preRender().

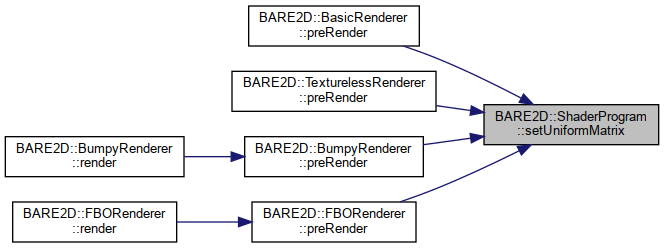

Here is the caller graph for this function:
