Holds all the very basic information for XML data. Designed to be a base class from which a user can derive custom data formats. To derive, please overload the default constructor and XMLData(std::string dataType, unsigned int ID) More...

#include <XMLDataTypes.hpp>

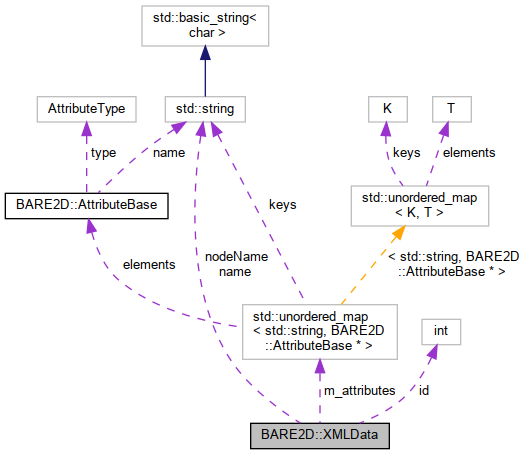

Collaboration diagram for BARE2D::XMLData:

Public Member Functions
	XMLData ()
	Just adds attributes, using the protected function addAttribute(AttributeBase* attr) or its vector counterpart, as well as the nodeName variable. More...

	XMLData (std::string dataType, unsigned int ID)
	Sets all data to a known XMLData's (Uses master map to retrieve this) More...

	XMLData (std::vector< AttributeBase * > attributes)

	XMLData (std::unordered_map< std::string, AttributeBase * > attributes)

	~XMLData ()

void	read (rapidxml::xml_node<> *node)
	Reads the entire piece of data from a given XML node. More...

void	write (rapidxml::xml_document<> *doc)
	Writes the entire piece of data to a new node in the XML document. More...

template<typename T >
T	getAttributeByName (std::string name)
	Finds an attribute by its name (eg. "name", "id") More...

std::unordered_map< std::string, AttributeBase * >	getAttributes ()

Data Fields
std::string	name

unsigned int	id

std::string	nodeName

Protected Member Functions
template<typename T >
void	addAttribute (std::string name, AttributeType type, T *data)
	Constructs and adds an attribute to the data. More...

void	addAttribute (AttributeBase *attr)
	Adds an attribute to the data. More...

void	addAttributes (std::vector< AttributeBase * > attrs)
	Bulk adds attributes to the data. More...

Protected Attributes
std::unordered_map< std::string, AttributeBase * >	m_attributes

Detailed Description

Holds all the very basic information for XML data. Designed to be a base class from which a user can derive custom data formats. To derive, please overload the default constructor and XMLData(std::string dataType, unsigned int ID)

Definition at line 108 of file XMLDataTypes.hpp.

Constructor & Destructor Documentation

◆ XMLData() [1/4]

BARE2D::XMLData::XMLData ( )

Just adds attributes, using the protected function addAttribute(AttributeBase* attr) or its vector counterpart, as well as the nodeName variable.

Definition at line 186 of file XMLDataTypes.cpp.

References addAttribute(), name, BARE2D::STRING, and BARE2D::UNSIGNED_INT.

Here is the call graph for this function:

◆ XMLData() [2/4]

BARE2D::XMLData::XMLData	(	std::string	dataType,
		unsigned int	ID
	)

Sets all data to a known XMLData's (Uses master map to retrieve this)

Parameters

dataType	The name of the type to make this
ID	The ID of the data.

Definition at line 195 of file XMLDataTypes.cpp.

References m_attributes, and name.

◆ XMLData() [3/4]

BARE2D::XMLData::XMLData ( std::vector< AttributeBase * > attributes )

Definition at line 204 of file XMLDataTypes.cpp.

References addAttribute(), addAttributes(), name, BARE2D::STRING, and BARE2D::UNSIGNED_INT.

Here is the call graph for this function:

◆ XMLData() [4/4]

BARE2D::XMLData::XMLData ( std::unordered_map< std::string, AttributeBase * > attributes )

Definition at line 215 of file XMLDataTypes.cpp.

References m_attributes.

◆ ~XMLData()

BARE2D::XMLData::~XMLData ( )

inline

Definition at line 124 of file XMLDataTypes.hpp.

Member Function Documentation

◆ addAttribute() [1/2]

void BARE2D::XMLData::addAttribute ( AttributeBase * attr )

protected

Adds an attribute to the data.

Parameters

attr	A pointer to the attribute to be added.

Definition at line 447 of file XMLDataTypes.cpp.

References m_attributes, and BARE2D::AttributeBase::name.

◆ addAttribute() [2/2]

template<typename T >

void BARE2D::XMLData::addAttribute	(	std::string	name,
		AttributeType	type,
		T *	data
	)

protected

Constructs and adds an attribute to the data.

Parameters

name	The name of the attribute. "name" and "id" are already in use, please don't break things like that.
type	The type of data. Eg. AttributeType::FLOAT is a float, AttributeType::VECTOR_FLOAT is a vector of floats, etc.
data	A pointer to the data that the attribute is linked to.

Referenced by addAttributes(), and XMLData().

Here is the caller graph for this function:
