BARE2D::Glyph Class Reference

The glyph represents a renderbatch's primitive data, which is created from each draw call in the basic renderer. More...

#include <Vertex.hpp>

+ Inheritance diagram for BARE2D::Glyph:

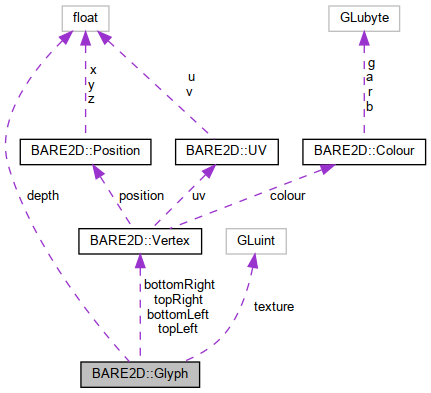

+ Collaboration diagram for BARE2D::Glyph:

Public Member Functions

 Glyph (glm::vec4 &destRect, glm::vec4 &uvRect, GLuint &Texture, float &Depth, Colour &colour)

 Glyph (glm::vec4 &destRect, glm::vec4 &uvRect, GLuint &Texture, float &Depth, Colour &colour, float &angle)

 Glyph (glm::vec4 &destRect, glm::vec4 &uvRect, GLuint &Texture, float &Depth, Colour &colour, float &angle, glm::vec2 &COR)


Data Fields

GLuint texture

float depth

Vertex topLeft

Vertex bottomLeft

Vertex topRight

Vertex bottomRight


Protected Member Functions

glm::vec2 rotatePoint (const glm::vec2 &pos, float &angle)


Detailed Description

The glyph represents a renderbatch's primitive data, which is created from each draw call in the basic renderer.

Definition at line 87 of file Vertex.hpp.

Constructor & Destructor Documentation

◆ Glyph() [1/3]

BARE2D::Glyph::Glyph ( glm::vec4 &  destRect,
glm::vec4 &  uvRect,
GLuint &  Texture,
float &  Depth,
Colour &  colour
)

Definition at line 4 of file Vertex.cpp.

References bottomLeft, bottomRight, BARE2D::Vertex::colour, depth, BARE2D::Vertex::setPosition(), BARE2D::Vertex::setUV(), topLeft, and topRight.

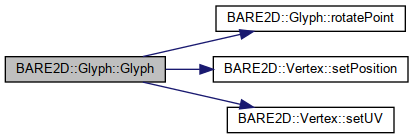

+ Here is the call graph for this function:

◆ Glyph() [2/3]

BARE2D::Glyph::Glyph ( glm::vec4 &  destRect,
glm::vec4 &  uvRect,
GLuint &  Texture,
float &  Depth,
Colour &  colour,
float &  angle
)

Definition at line 22 of file Vertex.cpp.

References bottomLeft, bottomRight, BARE2D::Vertex::colour, depth, rotatePoint(), BARE2D::Vertex::setPosition(), BARE2D::Vertex::setUV(), topLeft, and topRight.

+ Here is the call graph for this function:

◆ Glyph() [3/3]

BARE2D::Glyph::Glyph ( glm::vec4 &  destRect,
glm::vec4 &  uvRect,
GLuint &  Texture,
float &  Depth,
Colour &  colour,
float &  angle,
glm::vec2 &  COR
)

Definition at line 54 of file Vertex.cpp.

References bottomLeft, bottomRight, BARE2D::Vertex::colour, depth, rotatePoint(), BARE2D::Vertex::setPosition(), BARE2D::Vertex::setUV(), topLeft, and topRight.

+ Here is the call graph for this function:

Member Function Documentation

◆ rotatePoint()

glm::vec2 BARE2D::Glyph::rotatePoint ( const glm::vec2 &  pos,
float &  angle
)
protected

Definition at line 87 of file Vertex.cpp.

Referenced by Glyph().

+ Here is the caller graph for this function:

Field Documentation

◆ bottomLeft

Vertex BARE2D::Glyph::bottomLeft

Definition at line 100 of file Vertex.hpp.

Referenced by BARE2D::FBORenderer::createRenderBatches(), and Glyph().

◆ bottomRight

Vertex BARE2D::Glyph::bottomRight

Definition at line 100 of file Vertex.hpp.

Referenced by BARE2D::FBORenderer::createRenderBatches(), and Glyph().

◆ depth

float BARE2D::Glyph::depth

Definition at line 97 of file Vertex.hpp.

Referenced by Glyph().

◆ texture

GLuint BARE2D::Glyph::texture

Definition at line 94 of file Vertex.hpp.

Referenced by BARE2D::FBORenderer::createRenderBatches().

◆ topLeft

Vertex BARE2D::Glyph::topLeft

Definition at line 100 of file Vertex.hpp.

Referenced by BARE2D::FBORenderer::createRenderBatches(), and Glyph().

◆ topRight

Vertex BARE2D::Glyph::topRight

Definition at line 100 of file Vertex.hpp.

Referenced by BARE2D::FBORenderer::createRenderBatches(), and Glyph().

The documentation for this class was generated from the following files:
