BARE2D::VAO Class Reference

A wrapper class for OpenGL's VAO, as well as its associated VBO and attributes. More...

#include <VAO.hpp>

Collaboration diagram for BARE2D::VAO:

Public Member Functions
	VAO ()
	~VAO ()
void	init ()
	Initializes the necessary components, combining the VBO and VAO. More...
void	destroy ()
	Releases necessary memory. More...
void	bind ()
	Binds this vertex array object. More...
void	bindVBO ()
	Binds the VAO's VBO. More...
void	unbind ()
	Unbinds the vao. More...
void	unbindVBO ()
	Unbinds this VAO's VBO. More...
void	addVertexAttribute (GLint size, GLenum type, GLboolean normalized, GLsizei stride, const void *data)
	Wrapper for glVertexAttribPointer - Adds an attribute to the VBO - each vertex data slot will gain some attribute. More...

Private Attributes
unsigned int	m_numAttributes
GLuint	m_vaoHandle
GLuint	m_vboHandle

Detailed Description

A wrapper class for OpenGL's VAO, as well as its associated VBO and attributes.

Definition at line 11 of file VAO.hpp.

Constructor & Destructor Documentation

VAO()

BARE2D::VAO::VAO

(

)

Definition at line 5 of file VAO.cpp.

References m_numAttributes.

~VAO()

BARE2D::VAO::~VAO

(

)

Definition at line 10 of file VAO.cpp.

Member Function Documentation

addVertexAttribute()

void BARE2D::VAO::addVertexAttribute	(	GLint	size,
		GLenum	type,
		GLboolean	normalized,
		GLsizei	stride,
		const void *	data
	)

Wrapper for glVertexAttribPointer - Adds an attribute to the VBO - each vertex data slot will gain some attribute.

Parameters

size	Number of components per attribute (1-4)
type	Type of data - GL_BYTE, GL_UNSIGNED_BYTE, GL_SHORT, etc. See docs
normalized	Should the data be normalized or converted directly? (GL_TRUE/GL_FALSE)
stride	Specifies the byte offset between consecutive generic vertex attributes. If stride is 0, the generic vertex attributes are understood to be tightly packed in the array. The initial value is 0.
data	Specifies a offset of the first component of the first generic vertex attribute in the array in the data store of the buffer currently bound to the GL_ARRAY_BUFFER target. The initial value is 0.

Definition at line 66 of file VAO.cpp.

References bind(), bindVBO(), m_numAttributes, and unbind().

Referenced by BARE2D::BasicRenderer::init(), BARE2D::FBORenderer::init(), BARE2D::TexturelessRenderer::init(), and BARE2D::DebugRenderer::init().

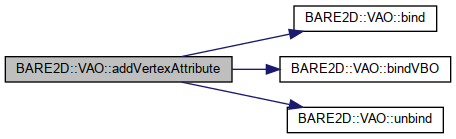

Here is the call graph for this function:

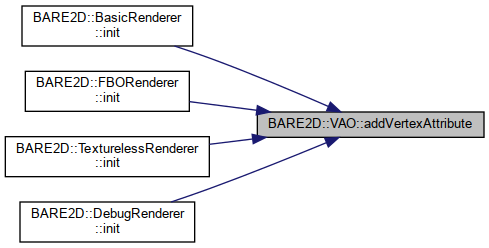

Here is the caller graph for this function:

bind()

void BARE2D::VAO::bind

(

)

Binds this vertex array object.

Definition at line 48 of file VAO.cpp.

References m_vaoHandle.

Referenced by addVertexAttribute(), init(), BARE2D::BumpyRenderer::render(), BARE2D::FBORenderer::render(), BARE2D::Renderer::render(), and BARE2D::DebugRenderer::render().

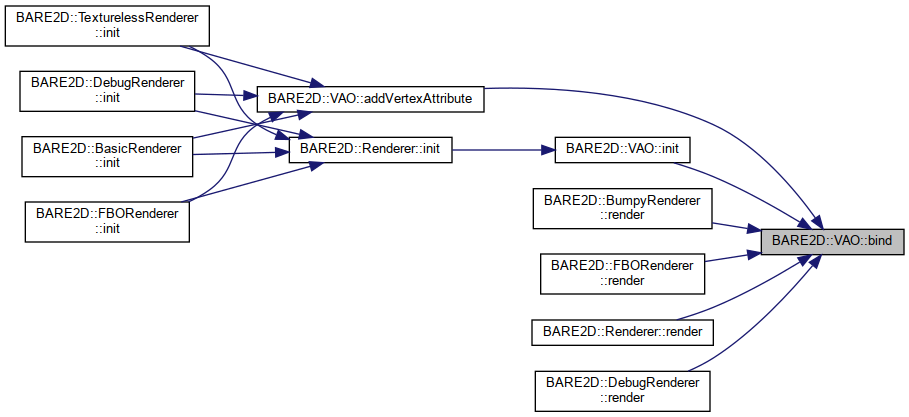

Here is the caller graph for this function:

bindVBO()

void BARE2D::VAO::bindVBO

(

)

Binds the VAO's VBO.

Definition at line 57 of file VAO.cpp.

References m_vboHandle.

Referenced by addVertexAttribute(), BARE2D::BumpyRenderer::createRenderBatches(), BARE2D::BasicRenderer::createRenderBatches(), BARE2D::FBORenderer::createRenderBatches(), BARE2D::TexturelessRenderer::createRenderBatches(), and BARE2D::DebugRenderer::createRenderBatches().

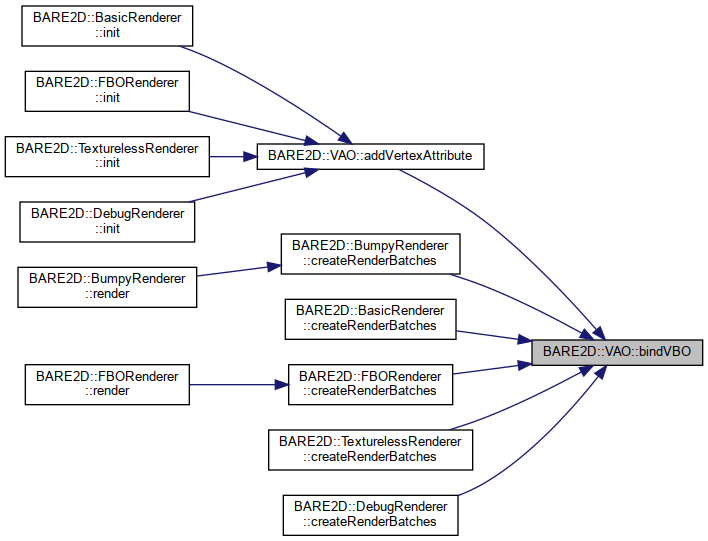

Here is the caller graph for this function:

destroy()

void BARE2D::VAO::destroy

(

)

Releases necessary memory.

Definition at line 33 of file VAO.cpp.

References m_numAttributes, m_vaoHandle, m_vboHandle, and unbind().

Referenced by BARE2D::Renderer::destroy().

Here is the call graph for this function:

Here is the caller graph for this function:

init()

void BARE2D::VAO::init

(

)

Initializes the necessary components, combining the VBO and VAO.

Definition at line 14 of file VAO.cpp.

References bind(), m_vaoHandle, m_vboHandle, and unbind().

Referenced by BARE2D::Renderer::init().

Here is the call graph for this function:

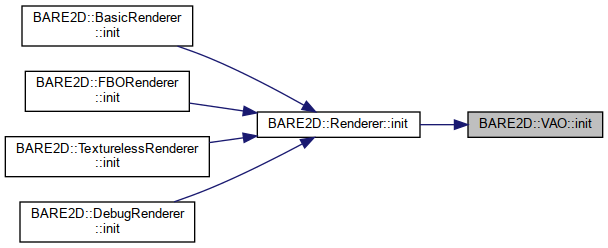

Here is the caller graph for this function:

unbind()

void BARE2D::VAO::unbind

(

)

Unbinds the vao.

Definition at line 53 of file VAO.cpp.

Referenced by addVertexAttribute(), destroy(), init(), BARE2D::BumpyRenderer::render(), BARE2D::FBORenderer::render(), BARE2D::Renderer::render(), and BARE2D::DebugRenderer::render().

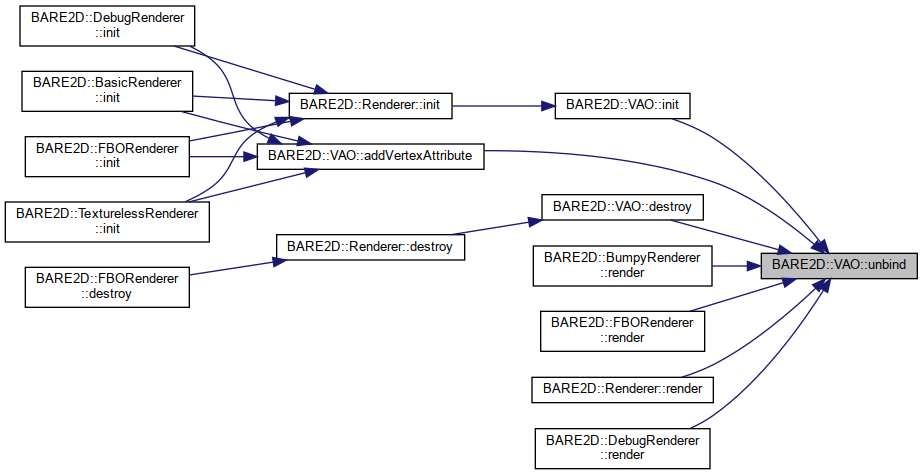

Here is the caller graph for this function:

unbindVBO()

void BARE2D::VAO::unbindVBO

(

)

Unbinds this VAO's VBO.

Definition at line 62 of file VAO.cpp.

Referenced by BARE2D::BumpyRenderer::createRenderBatches(), BARE2D::BasicRenderer::createRenderBatches(), BARE2D::FBORenderer::createRenderBatches(), and BARE2D::TexturelessRenderer::createRenderBatches().

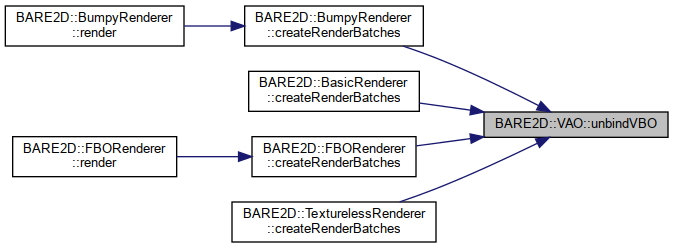

Here is the caller graph for this function:

Field Documentation

m_numAttributes

unsigned int BARE2D::VAO::m_numAttributes

private

Definition at line 58 of file VAO.hpp.

Referenced by addVertexAttribute(), destroy(), and VAO().

m_vaoHandle

GLuint BARE2D::VAO::m_vaoHandle

private

Definition at line 60 of file VAO.hpp.

Referenced by bind(), destroy(), and init().

m_vboHandle

GLuint BARE2D::VAO::m_vboHandle

private

Definition at line 61 of file VAO.hpp.

Referenced by bindVBO(), destroy(), and init().

---

The documentation for this class was generated from the following files:

• VAO.hpp
• VAO.cpp
