#include <DebugRenderer.hpp>

Inheritance diagram for BARE2D::DebugRenderer:

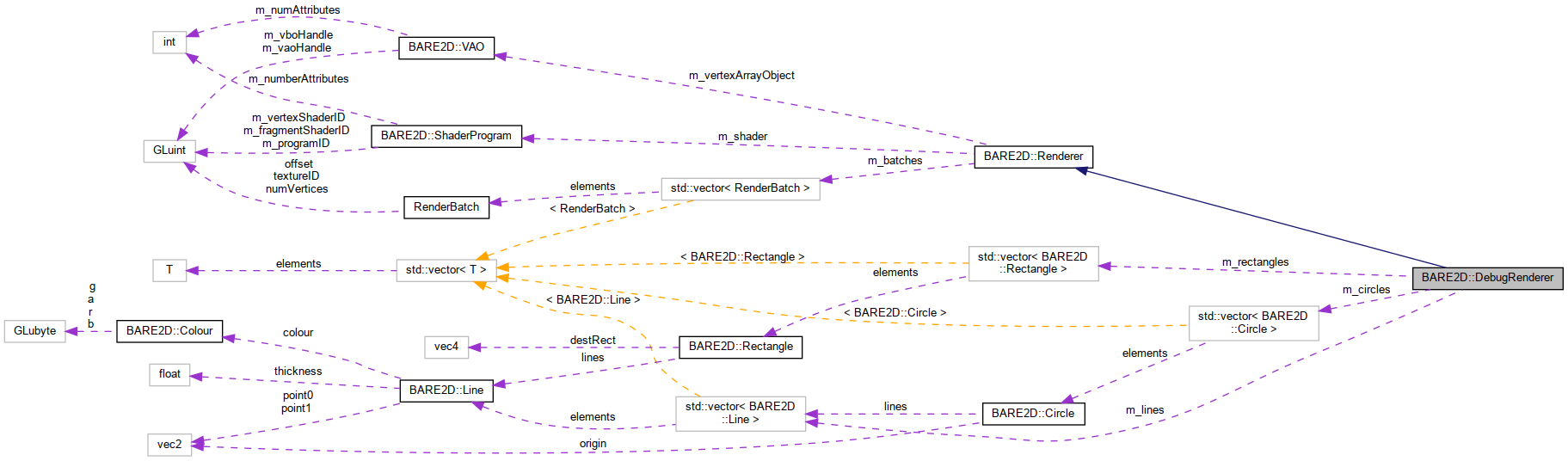

Collaboration diagram for BARE2D::DebugRenderer:

Public Member Functions
	DebugRenderer ()

virtual	~DebugRenderer ()

virtual void	init () override
	Initializes with very rudimentary shaders (hardcoded), adds vertex attributes. More...

virtual void	begin () override
	Clears the necessary vectors, etc. to prepare for draw() calls, etc. More...

virtual void	render () override
	Actually renders the contents to the screen! More...

virtual void	drawLine (glm::vec2 point0, glm::vec2 point1, float thickness, Colour colour)
	Draws a line. More...

virtual void	drawCircle (glm::vec2 centre, float lineThickness, float radius, Colour fillColour=Colour(255, 255, 255, 255))
	Draws a circle. More...

virtual void	drawRectangle (glm::vec4 destRect, float lineThickness, Colour fillColour=Colour(255, 255, 255, 255))
	Draws a rectangle. More...

Public Member Functions inherited from BARE2D::Renderer
	Renderer ()

virtual	~Renderer ()

virtual void	end ()
	Creates the renderbatches, does necessary stuff before render() call. More...

virtual void	initUniforms ()
	Initializes all uniforms, such as colour attachments, depth attachments, etc. More...

virtual void	destroy ()
	Frees all necessary memory. More...

ShaderProgram *	getShader ()

Protected Member Functions
virtual void	createRenderBatches () override
	Constructs all of the render batches from data given by, say, draw() calls. More...

Protected Member Functions inherited from BARE2D::Renderer
virtual void	preRender ()
	Does stuff inside of the render function, within the shader's use. More...

virtual void	link (std::initializer_list< std::string > attributes)

Protected Attributes
std::vector< Line >	m_lines

std::vector< Circle >	m_circles

std::vector< Rectangle >	m_rectangles

Protected Attributes inherited from BARE2D::Renderer
ShaderProgram	m_shader

VAO	m_vertexArrayObject

std::vector< RenderBatch >	m_batches

Detailed Description

Author: Davis-Dev

Date: 10/08/23

Definition at line 42 of file DebugRenderer.hpp.

Constructor & Destructor Documentation

◆ DebugRenderer()

BARE2D::DebugRenderer::DebugRenderer ( )

Definition at line 68 of file DebugRenderer.cpp.

◆ ~DebugRenderer()

BARE2D::DebugRenderer::~DebugRenderer ( )

virtual

Definition at line 71 of file DebugRenderer.cpp.

Member Function Documentation

◆ begin()

void BARE2D::DebugRenderer::begin ( )

overridevirtual

Clears the necessary vectors, etc. to prepare for draw() calls, etc.

Reimplemented from BARE2D::Renderer.

Definition at line 90 of file DebugRenderer.cpp.

References BARE2D::Renderer::begin(), m_circles, m_lines, and m_rectangles.

Here is the call graph for this function:

◆ createRenderBatches()

void BARE2D::DebugRenderer::createRenderBatches ( )

overrideprotectedvirtual

Constructs all of the render batches from data given by, say, draw() calls.

Implements BARE2D::Renderer.

Definition at line 113 of file DebugRenderer.cpp.

References BARE2D::VAO::bindVBO(), CIRCLE_LINES, m_circles, m_lines, m_rectangles, and BARE2D::Renderer::m_vertexArrayObject.

Here is the call graph for this function:

◆ drawCircle()

void BARE2D::DebugRenderer::drawCircle	(	glm::vec2	centre,
		float	lineThickness,
		float	radius,
		Colour	fillColour = `Colour(255, 255, 255, 255)`
	)

virtual

Draws a circle.

Parameters

centre	The centre point of the circle
lineThickness	The thickness of the lines creating the circle
radius	The radius of the circle
lineColour	The colour of the lines
fillColour	The fill of the circle

Definition at line 103 of file DebugRenderer.cpp.

References m_circles.

◆ drawLine()

void BARE2D::DebugRenderer::drawLine	(	glm::vec2	point0,
		glm::vec2	point1,
		float	thickness,
		Colour	colour
	)

virtual

Draws a line.

Parameters

point0	The origin
point1	Where the line goes to
thickness	The thickness of the line
colour	The colour of the line

Definition at line 98 of file DebugRenderer.cpp.

References m_lines.

◆ drawRectangle()

void BARE2D::DebugRenderer::drawRectangle	(	glm::vec4	destRect,
		float	lineThickness,
		Colour	fillColour = `Colour(255, 255, 255, 255)`
	)

virtual

Draws a rectangle.

Parameters

destRect	The destination rectangle of the rectangle (position, then size)
lineColour	The colour of the lines that make up the rectangle
fillColour	The colour of the fill.

Definition at line 108 of file DebugRenderer.cpp.

References m_rectangles.

◆ init()

void BARE2D::DebugRenderer::init ( )

overridevirtual

Initializes with very rudimentary shaders (hardcoded), adds vertex attributes.

Reimplemented from BARE2D::Renderer.

Definition at line 74 of file DebugRenderer.cpp.

References BARE2D::VAO::addVertexAttribute(), BARE2D::ShaderProgram::compileShadersFromSource(), fragShaderSource, BARE2D::Renderer::init(), BARE2D::Renderer::link(), BARE2D::Renderer::m_shader, BARE2D::Renderer::m_vertexArrayObject, and vertShaderSource.

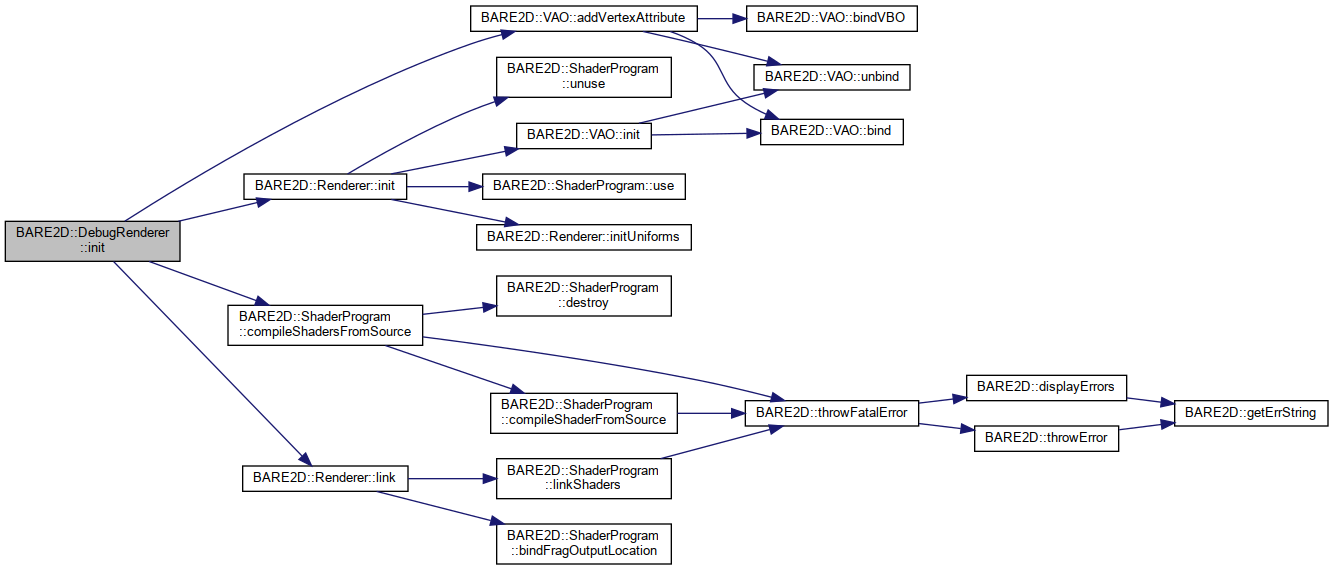

Here is the call graph for this function:

◆ render()

void BARE2D::DebugRenderer::render ( )

overridevirtual

Actually renders the contents to the screen!

Reimplemented from BARE2D::Renderer.

Definition at line 196 of file DebugRenderer.cpp.

References BARE2D::VAO::bind(), CIRCLE_LINES, BARE2D::GLContextManager::getContext(), m_circles, m_lines, m_rectangles, BARE2D::Renderer::m_shader, BARE2D::Renderer::m_vertexArrayObject, BARE2D::GLContext::setActiveTexture(), BARE2D::VAO::unbind(), BARE2D::ShaderProgram::unuse(), and BARE2D::ShaderProgram::use().

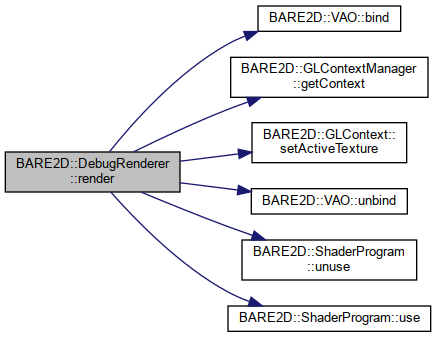

Here is the call graph for this function:

Field Documentation

◆ m_circles

std::vector<Circle> BARE2D::DebugRenderer::m_circles

protected

Definition at line 87 of file DebugRenderer.hpp.

Referenced by begin(), createRenderBatches(), drawCircle(), and render().

◆ m_lines

std::vector<Line> BARE2D::DebugRenderer::m_lines

protected

Definition at line 86 of file DebugRenderer.hpp.

Referenced by begin(), createRenderBatches(), drawLine(), and render().

◆ m_rectangles

std::vector<Rectangle> BARE2D::DebugRenderer::m_rectangles

protected

Definition at line 88 of file DebugRenderer.hpp.

Referenced by begin(), createRenderBatches(), drawRectangle(), and render().

The documentation for this class was generated from the following files:
